Russia no foundation Concrete Batching Plant

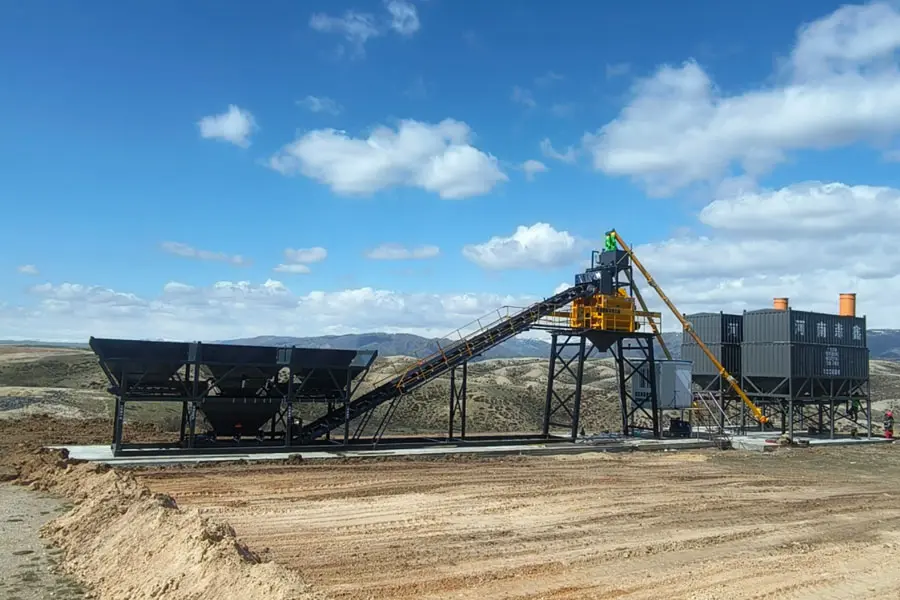

Recently, a 90 cubic meter/hour no foundation concrete batching plant in Russia was officially completed and put into trial operation. This advanced plant features fully automated loading and batching, requiring no human intervention, enabling intelligent and efficient operation. The project is now capable of producing concrete, marking a significant step forward in construction technology.

So, what is a no foundation concrete batching plant? As the name suggests, a foundation-free concrete batching plant requires no traditional foundation construction, requiring only simple site hardening. This not only significantly saves construction time and costs, but also ensures the stability and safety of the equipment. Furthermore, the plant's design incorporates a foundation-free frame, which enhances the equipment's durability without compromising production efficiency, greatly facilitating subsequent relocation and disassembly. It exemplifies the efficiency, flexibility, and safety of modern construction technology.

Mixer discharge capacity: 1500L
Mixer feed capacity: 2000L
Mixer motor power: 30 x 2 kW
Discharge height: 4.1m
Aggregate batching unit capacity: 7 x 3 m³
Cycle cycle: 60s
Maximum aggregate size: 80/60mm
Cement silo (optional): 2 x 100-ton (double-deck)

Features of a no foundation concrete batching plant

Standard foundation-less concrete batching plants have a slightly higher cost and take up more space than standard equipment. However, we take our customers' site and budget constraints into consideration and offer an affordable, all-in-one, foldable foundation-less concrete batching plant. This plant is not only easy to transport, but also saves significant space and reduces costs. We tailor the most suitable equipment to meet your specific needs.

Differences between no foundation and fixed concrete batching plant

Generally speaking, conventional concrete batching plants require a solid foundation to ensure stability and durability. During foundation construction, the foundation depth must be determined based on the specific size and type of the concrete batching plant. Foundation construction typically takes 5-9 days. Only after the foundation is completed can the equipment be installed and commissioned, and frequent movement is not recommended.

What types of concrete batching plants are there?

Concrete batching plants come in a variety of configurations, such as horizontal and L-shaped. They can be manufactured to standard sizes or customized to suit specific site conditions. Colors can also be customized. Based on their application, concrete batching plants can be categorized into various types, including construction-based, commercial, mobile, foundation-free, and high-end. For more details, please feel free to contact us.
